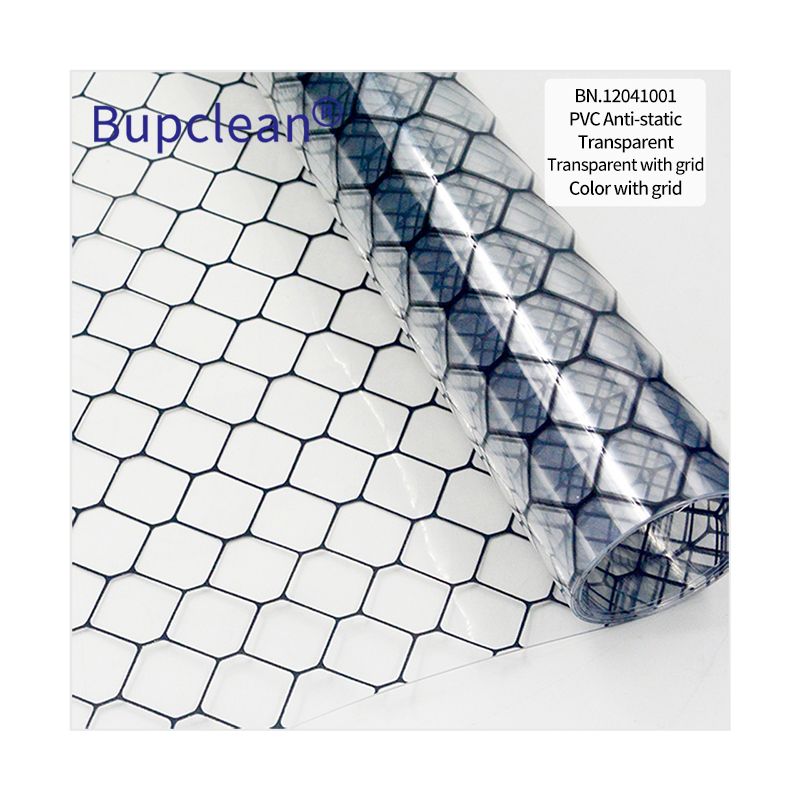

PVC Anti‑static Mat – Transparent / Grid
Bupclean® PVC anti‑static mat. Transparent, transparent with grid, or color with grid options. Surface resistance 10⁶–10⁹ Ω. For workbenches and ESD floors. Model BN.12041001.
We are committed to delivering five‑star service across every product we offer — from responsive support to reliable delivery and beyond. Your satisfaction is our benchmark.
| Parameter | Value |
|---|---|
| Brand | Bupclean® |
| Model | BN.12041001 |
| Material | PVC (polyvinyl chloride) with conductive additive |
| Color options | Transparent (clear), Transparent with grid, Color with grid (blue, grey, pink etc.) |
| Grid spacing (if applicable) | 10 mm × 10 mm or 20 mm × 20 mm (typical) |
| Surface resistance (top to bottom) | 10⁶ – 10⁹ Ω (ANSI/ESD STM11.11) |
| Ground resistance (with snap) | <10⁹ Ω (when grounded via 1 MΩ cord) |
| Thickness | 1.0 mm, 1.5 mm, 2.0 mm (select when ordering) |
| Width options | 600 mm, 800 mm, 1000 mm, 1200 mm |
| Length options | 1 m, 2 m, 10 m rolls, or cut to size |
| Operating temperature | 0 – 50°C |
| Chemical resistance | Good for IPA, ethanol, mild detergents; avoid acetone |
| Cleanroom compatible | ISO 7 – ISO 8 (low particle shedding) |
| UV resistance | Fair – avoid prolonged direct sunlight |
| Packaging | Rolled with protective film on top surface |
Key Features & Real Data
1. Three visual styles for different needs
| Style | Description | Best for |
|---|---|---|
| Transparent (clear) | Fully transparent, no grid | Workbenches where operators need to see through to drawings or backlit panels |
| Transparent with grid | Clear with printed grid lines (e.g., 10mm squares) | Component alignment, measuring placement, SMT setup |
| Color with grid | Colored background (blue, grey, pink) with grid lines | High visibility, aesthetic, easy to spot dirt or components |
2. Anti‑static performance
Surface resistance measured per ANSI/ESD STM11.11 (point‑to‑point, 10V, 10 seconds):
| Style | Resistance (Ω) new | Resistance after 1000 IPA wipes |
|---|---|---|
| Transparent | 3.2 × 10⁷ | 4.5 × 10⁷ |
| Transparent with grid | 4.1 × 10⁷ | 5.2 × 10⁷ |
| Color with grid (blue) | 2.8 × 10⁷ | 3.6 × 10⁷ |
All pass the 10⁶–10⁹ Ω requirement.
3. Grid pattern utility (for grid versions)
The printed grid lines help with:
Aligning PCBs or components during assembly
Estimating component sizes or distances
Positioning test probes or fixtures
Cutting the mat to exact dimensions
Thickness selection
| Thickness | Stiffness | Best for |
|---|---|---|
| 1.0 mm | Flexible, rolls easily | Portable mats, covering uneven surfaces |
| 1.5 mm | Medium | Standard workbench, good balance |
| 2.0 mm | Rigid, stays flat | Heavy use, soldering workbenches |
Chemical resistance test data
| Chemical | Contact time | Effect |
|---|---|---|
| IPA (70%) | 1 hour | No change |
| Ethanol | 1 hour | No change |
| Acetone | 10 minutes | Surface dulls, slight swelling |
| Mild detergent | 1 hour | No change |
Avoid prolonged contact with acetone, toluene, or strong acids.
