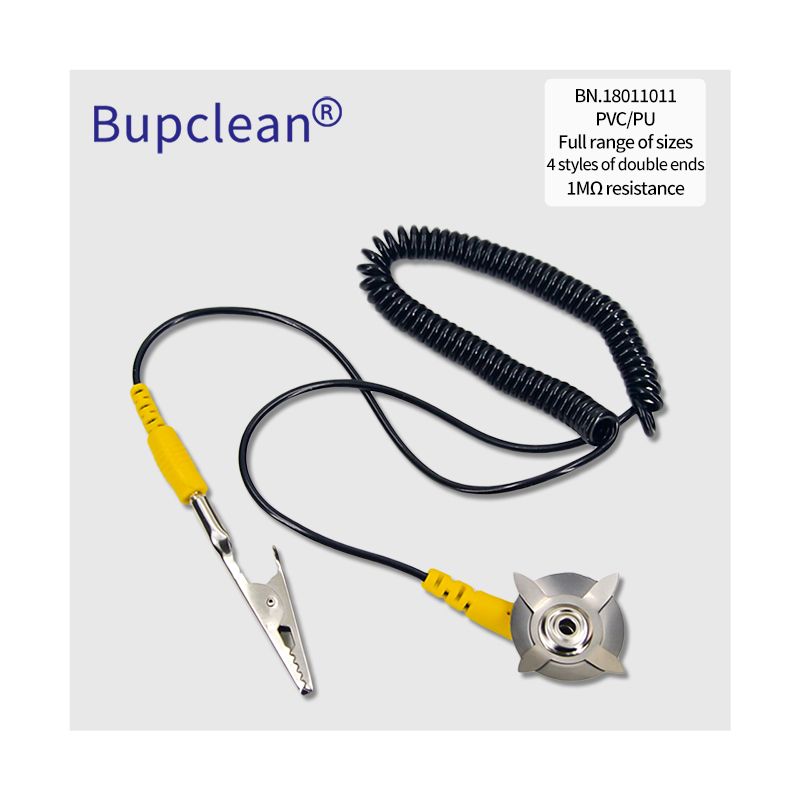

ESD Ground Cord – Full Range of Sizes
Bupclean® ESD ground cord with 1MΩ resistor. PVC or PU jacket. 4 double‑end styles: snap to snap, snap to banana, snap to clip, banana to clip. Full size range. Model BN.18011011.
We are committed to delivering five‑star service across every product we offer — from responsive support to reliable delivery and beyond. Your satisfaction is our benchmark.
| Parameter | Value |
|---|---|
| Brand | Bupclean® |
| Model | BN.18011011 |
| Resistor | 1 MΩ ±5% (built‑in, metal film type) |
| Jacket material | PVC (standard, flexible) or PU (polyurethane, more durable) |
| Conductor | 7‑strand copper, 28 AWG or equivalent |
| System resistance (end to end) | 0.95 – 1.05 MΩ (typical) |
| Length options (full range) | 4 ft (1.2 m), 6 ft (1.8 m), 8 ft (2.4 m), 10 ft (3.0 m), 12 ft (3.6 m) |
| Connection styles (4 types) | Snap to Snap, Snap to Banana, Snap to Alligator Clip, Banana to Alligator Clip |
| Snap type | 4 mm nickel‑plated brass (for wrist strap) |
| Banana plug | 4 mm standard shrouded or unshrouded |
| Alligator clip | Stainless steel, teeth, with strain relief |
| Operating temperature | –10°C to 60°C |
| RoHS compliant | Yes |
Key Features & Real Data
1. Built‑in 1MΩ resistor
The resistor limits current to below 0.5 mA if the operator accidentally contacts live voltage. Tested per ANSI/ESD SP1.0:
| Parameter | Specification | Our typical |
|---|---|---|
| Resistance (snap to clip) | 0.8 – 1.2 MΩ | 1.02 MΩ |
| Voltage rating | 50 V DC | Pass |
2. Four double‑end connection styles
| Style Code | End A | End B | Typical use |
|---|---|---|---|
| S‑S | 4mm Snap | 4mm Snap | Connect two wrist straps or daisy chain |
| S‑B | 4mm Snap | 4mm Banana plug | Wrist strap to bench ground socket |
| S‑C | 4mm Snap | Alligator clip | Wrist strap to common ground point |
| B‑C | 4mm Banana | Alligator clip | Bench ground socket to ground point |
3. Jacket material options
| Material | Flexibility | Durability | Best for | Color |
|---|---|---|---|---|
| PVC | Good | Standard | General use, fixed workstations | Black, blue, yellow |
| PU | Excellent | High (resists oils, abrasion) | Cleanrooms, mobile use, high wear areas | Black, clear |
4. Full size range – measured resistance vs length
| Length | Resistance (typical) | Acceptable range |
|---|---|---|
| 4 ft (1.2 m) | 1.00 MΩ | 0.8 – 1.2 MΩ |
| 6 ft (1.8 m) | 1.02 MΩ | 0.8 – 1.2 MΩ |
| 8 ft (2.4 m) | 1.03 MΩ | 0.8 – 1.2 MΩ |
| 10 ft (3.0 m) | 1.05 MΩ | 0.8 – 1.2 MΩ |
| 12 ft (3.6 m) | 1.07 MΩ | 0.8 – 1.2 MΩ |
Customer Reviews
Our clients from semiconductor, pharmaceutical, medical device, and aerospace industries trust our cleanroom wipers for consistent performance, high absorption, and low particle generation. Here’s what they have to say.
Related Products
Related products
Antistatic Fabric GlovesCleanroom Gloves – ESD Safe
- Hand Protection
Heat Resistant Glove
- Hand Protection

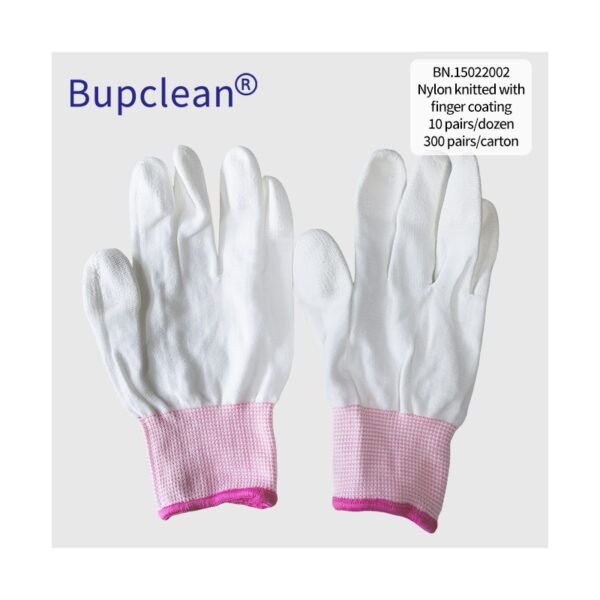

Nylon Knitted Gloves with Finger Coating – 10 Pairs per Dozen
