Replacement ESD Ground Cord – 1 MΩ Resistor, Coiled or Straight, 4mm Snap
Replacement ESD ground cord with built-in 1 MΩ resistor. Coiled (1.8m to 3m) or straight (1.8m). 4mm snap, stainless clip. Flex life tested to 15,000 cycles.
We are committed to delivering five‑star service across every product we offer — from responsive support to reliable delivery and beyond. Your satisfaction is our benchmark.

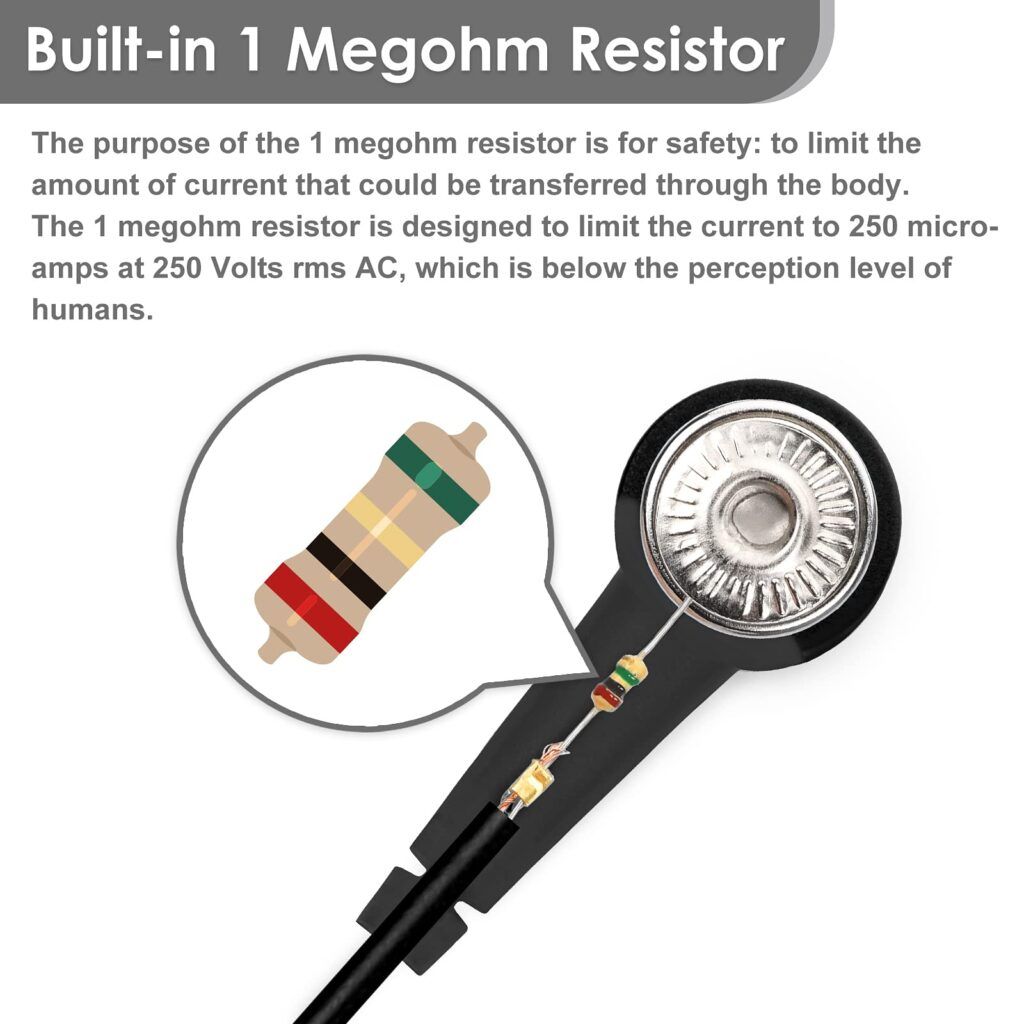

This replacement ground cord is designed for ESD wrist straps with a detachable 4mm snap. It includes the required 1 MΩ current‑limiting resistor and a stainless steel alligator clip. When your original cord fails from daily flexing, replace the cord – not the entire wrist strap.

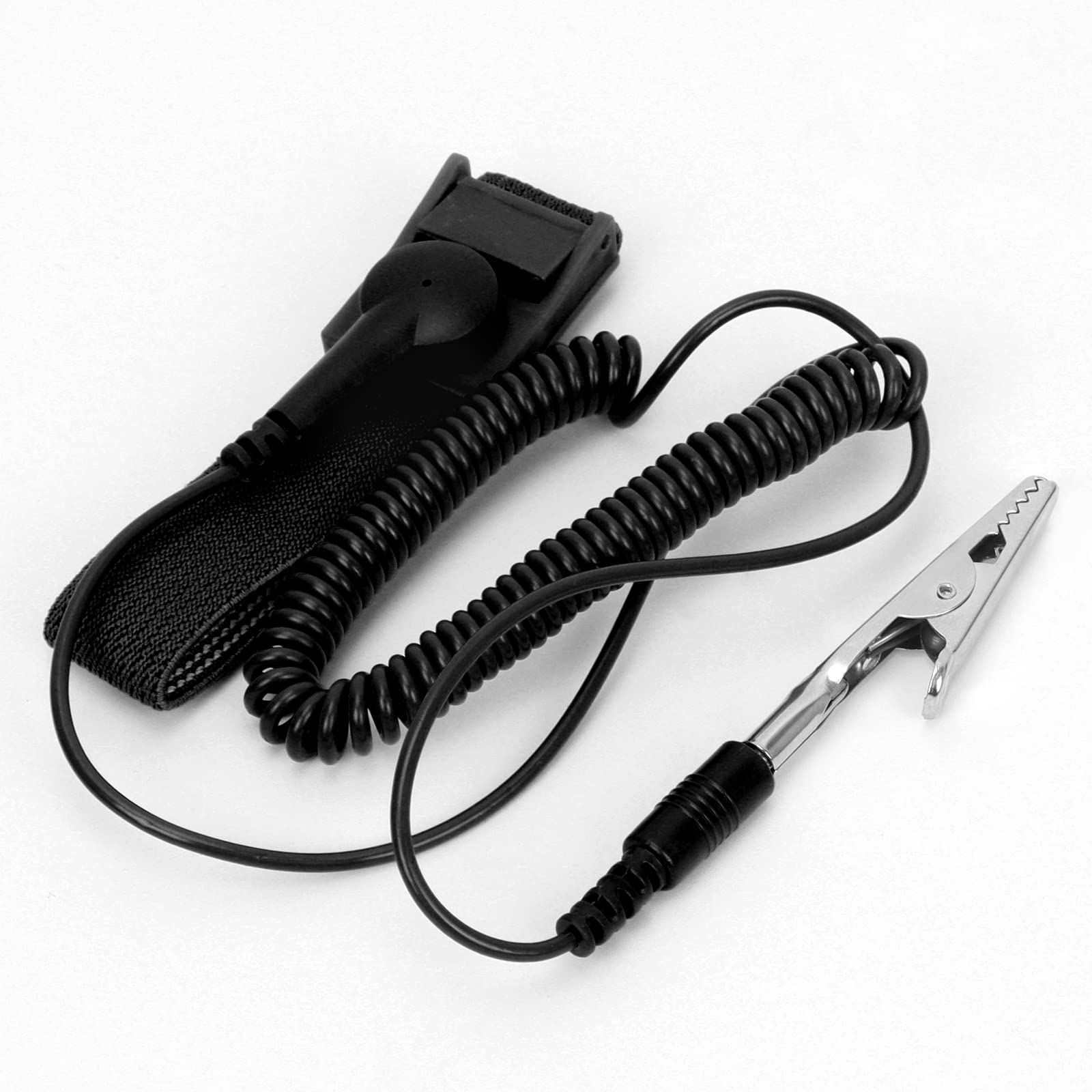

Available in two types:
Coiled cord – stretches from 1.8m to 3m (6–10 ft), tangle‑resistant
Straight cord – 1.8m (6 ft), lighter, longer flex life
Both versions use the same 4mm snap and clip, and both contain the 1 MΩ resistor.
Specifications
| Parameter | Coiled version | Straight version |
|---|---|---|
| Part number | ESD‑CORD‑COIL‑6FT | ESD‑CORD‑STRAIGHT‑6FT |
| Cord length (relaxed) | 1.8 m (6 ft) | 1.8 m (6 ft) |
| Stretched length (max) | 3.0 m (10 ft) | N/A (non‑stretch) |
| Cord jacket material | Polyurethane (PUR) | PVC |
| Snap type | 4 mm nickel‑plated brass | 4 mm nickel‑plated brass |
| Clip type | Stainless steel alligator with teeth | Stainless steel alligator with teeth |
| Integrated resistor | 1 MΩ, ±5% | 1 MΩ, ±5% |
| System resistance (snap to clip) | 0.95 – 1.05 MΩ typical | 0.95 – 1.05 MΩ typical |
| Flex life (at snap) | >15,000 cycles (tested) | >25,000 cycles (tested) |
| Operating temperature | 0 – 50°C | 0 – 50°C |
| RoHS compliant | Yes | Yes |
| Cleanroom compatible | Yes (low shedding) | Yes (PVC acceptable for ISO 7+) |
Real Test Data – Flex Life Comparison
We tested both cord types to failure (open circuit). Test method: 90° bend at the snap connection, 1 cycle per second.
| Cycles | Coiled cord (resistance) | Straight cord (resistance) |
|---|---|---|
| 0 (new) | 0.98 MΩ | 1.01 MΩ |
| 5,000 | 1.00 MΩ | 1.00 MΩ |
| 10,000 | 1.03 MΩ | 1.01 MΩ |
| 15,000 | 1.09 MΩ (pass) | 1.02 MΩ |
| 20,000 | Open circuit (fail) | 1.03 MΩ |
| 30,000 | – | 1.08 MΩ (pass) |
| 35,000 | – | Open circuit (fail) |
Conclusion: Straight cord lasts approximately twice as long as coiled cord in flex life. Choose straight for workstations where the cord is plugged in and left; choose coiled for operators who move around and need stretch.
